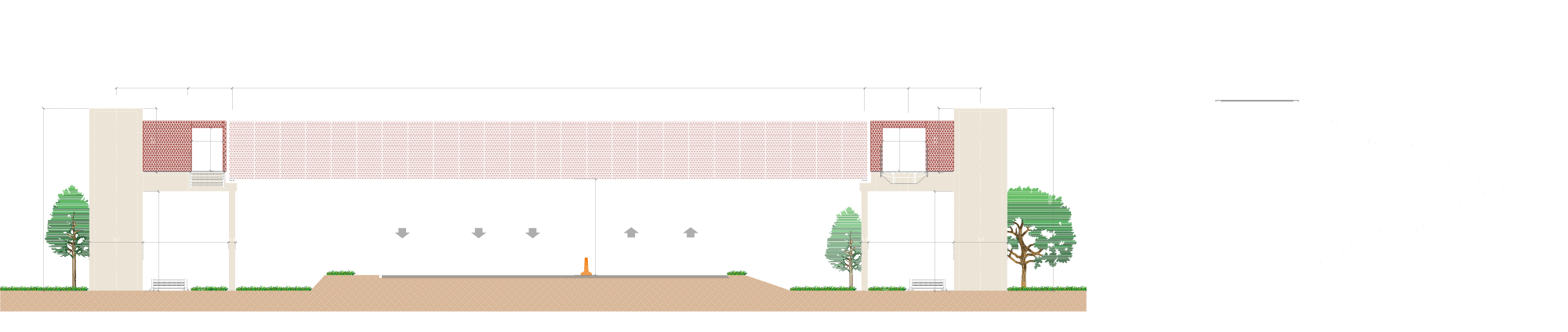

Cycle and Pedestrian Overpass on SS72 Road
Services rendered

Detailed design of the structural works for the footbridge, access ramps, stairways, vertical structures, and foundations.

Significant data
Tipology
Truss structure with two access ramps formed by a steel deck system, reinforced concrete vertical elements, and steel staircases
Number of spans
10+1+8
Length
140+36+140 m
Maximum span
36 m
Maximum width
3.4 m
Structural steel
300 t
Concrete volume
600 mc
